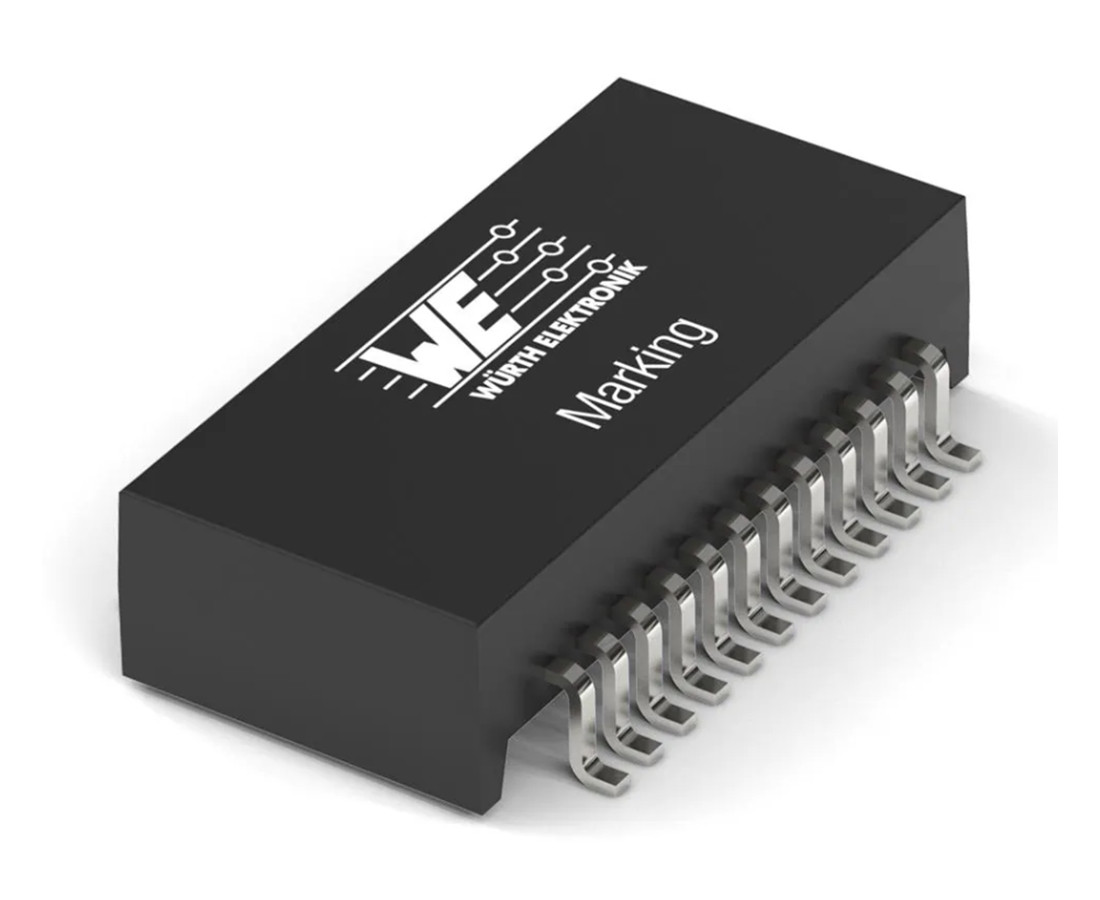

749020023A Wurth Transformer LAN

Symbol Micros: TR 749020023A

532059

TR 749020023A

Contractor Symbol:

Case : Rys.749020023A

Datasheet

Add to favourites

Turns ratio: 1:1; 10/100/1000 Base-T; 350uH; 1,5kV; dimensions: 15.1x7.1x4.25mm; operating temperature: -85°C~40°C

Parameters

Height:	4,25mm
Width:	7,11mm
Lenght:	15,1mm
Manufacturer:	Wurth
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	4,25mm
Width:	7,11mm
Lenght:	15,1mm
Manufacturer:	Wurth
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
