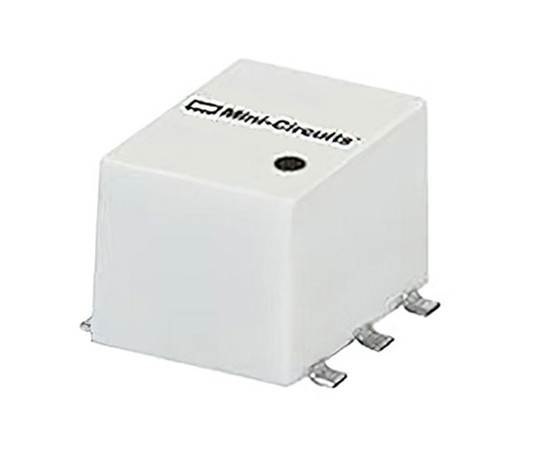

ADT4-6T+ Mini-Circuits Transformer

Symbol Micros: TR ADT4-6T+

410535

TR ADT4-6T+

Contractor Symbol:

Case : Rys.ADT4-6T+

Datasheet

Technical drawing Add to favourites

50R; SMD; 60 kHz to 300 MHz; 30 mA; 250 mW; dimensions: 7.87x5.59x5.23mm; operating temperature: -20°C~85°C

Parameters

Height:	5,23mm
Width:	5,59mm
Lenght:	7,87mm
Manufacturer:	Mini-Circuits
Operating temperature (range):	-20°C ~ 85°C
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	5,23mm
Width:	5,59mm
Lenght:	7,87mm
Manufacturer:	Mini-Circuits
Operating temperature (range):	-20°C ~ 85°C
Mounting:	SMD
