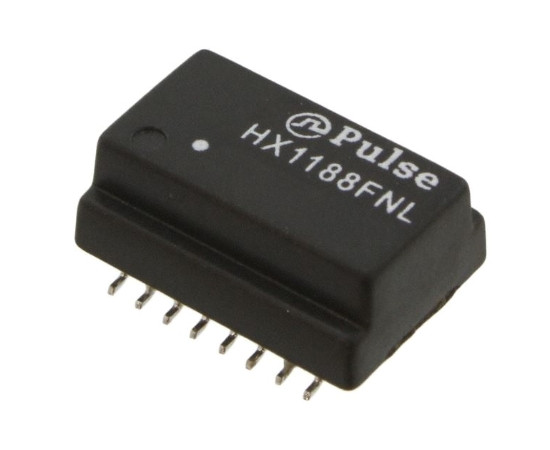

HX1188FNL PULSE Transformer LAN

Symbol Micros: TR HX1188FNL

295471

TR HX1188FNL

Contractor Symbol:

Case : Rys.HX1188FNL

Datasheet

Technical drawing Add to favourites

Turns ratio: RX 1:1, TX 1:1; Ethernet (10/100 Base-T); SMD; dimensions: 12.7x9.09x5.99mm; operating temperature: -40°C~85°C; max.insertion loss -1dB,

Parameters

Height:	5,99mm
Width:	9,09mm
Lenght:	12,7mm
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD

All parameters

Manufacturer:: PULSE Manufacturer part number: HX1188FNL Case style: Rys.HX1188FNL

External warehouse:

160 pcs.

Quantity of pcs.	40+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,4997

Add to comparison tool Add inquiry (RFQ)

Packaging:
40

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Height:	5,99mm
Width:	9,09mm
Lenght:	12,7mm
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
