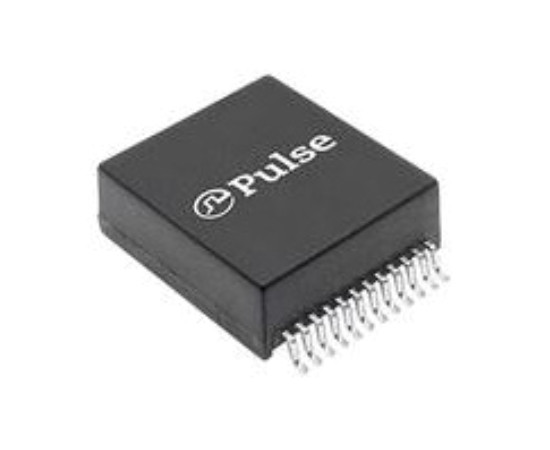

HX5008NL PULSE Transformer LAN

Symbol Micros: TR HX5008NL

295472

TR HX5008NL

Contractor Symbol:

Case : Rys.HX5008NL

Datasheet

Technical drawing Add to favourites

Turns ratio: RX 1:1, TX 1:1; Ethernet (1000 Base-T); SMD; dimensions: 18.8x13.64x5.72mm; operating temperature: 0~+70°C; max.insertion loss 1dB

Parameters

Height [mm]:	5,72mm
Width [mm]:	13,64mm
Lenght:	18,8mm
Manufacturer:	Pulse
Operating temperature (range):	0°C ~ 70°C
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height [mm]:	5,72mm
Width [mm]:	13,64mm
Lenght:	18,8mm
Manufacturer:	Pulse
Operating temperature (range):	0°C ~ 70°C
Mounting:	SMD
