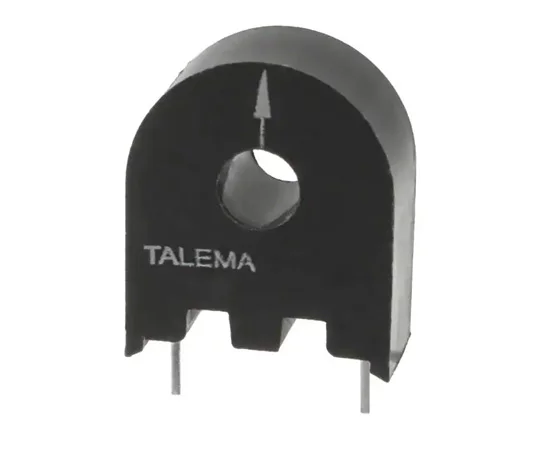

AS-103 TALEMA Sensor

Symbol Micros: TR P AS-103

27637

TR P AS-103

Contractor Symbol:

Case : Rys.AS

Datasheet

Technical drawing Add to favourites

High frequency current sensor; turns ratio 1:300; Lsec=250mH; DCR=10R max; Isec=50mA max; V=900uS max

Parameters

Manufacturer:	Talema
Series:	AS
Width [mm]:	17,2mm
Height [mm]:	17,0mm
Turns ratio:	1:300
Lenght:	9,53mm
Inductance:	250mH

All parameters

Manufacturer:: TALEMA Manufacturer part number: AS-103 RoHS Case style: Rys.AS Datasheet

In stock:

8 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	1,8317	1,5272	1,3515	1,2695	1,2203

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: TALEMA Manufacturer part number: AS-103 Case style: Rys.AS

External warehouse:

280 pcs.

Quantity of pcs.	5+ (Please wait for the order confirmation)
Net price (EUR)	1,5525

Add to comparison tool Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Manufacturer:	Talema
Series:	AS
Width [mm]:	17,2mm
Height [mm]:	17,0mm
Turns ratio:	1:300
Lenght:	9,53mm
Inductance:	250mH
Operating temperature (range):	-40°C ~ 120°C
Resistance:	10 Ohm
Current:	0,05A
Volt uS:	900V
