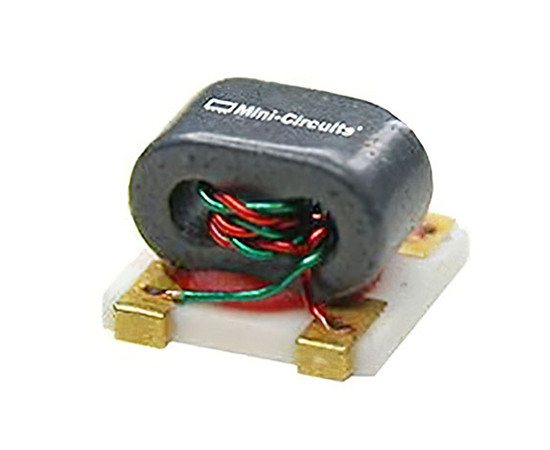

TC1.5-52TG2+ Mini-Circuits Transformer

Symbol Micros: TR TC1.5-52TG2+

410534

TR TC1.5-52TG2+

Contractor Symbol:

Case : Rys.TC1.5-52TG2+

Datasheet

Technical drawing Add to favourites

1,5R; SMD; 0,5 MHz to 550 MHz; 30 mA; 250 mW; dimensions: 3.81x3.81x3.81mm; operating temperature: -40°C~85°C

Parameters

Height:	3,81mm
Width:	3,81mm
Lenght:	3,81mm
Manufacturer:	Mini-Circuits
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	3,81mm
Width:	3,81mm
Lenght:	3,81mm
Manufacturer:	Mini-Circuits
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
