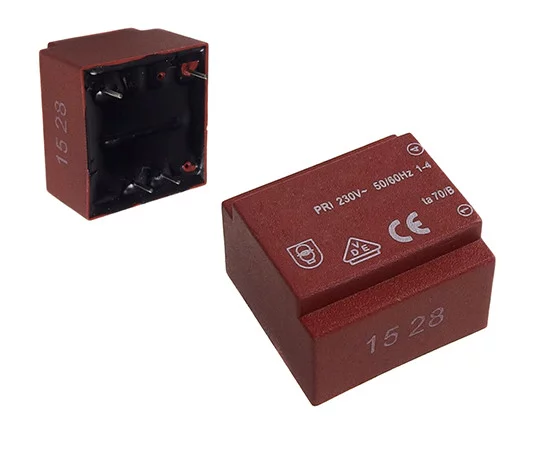

Encapsulated transformer; 0.35VA

Symbol Micros: TR Z00.35/09b II

98329

TR Z00.35/09b II

Contractor Symbol:

Case : Rys.TRZ00.3509BII

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 0.35VA; 230V/9V; 39mA; Ta=70°C; H=16mm; equivalent: BV 201 0136; VN20.6/09466

Product description

Parameters

VA power:	0,35VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

VA power:	0,35VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	39mA

Detailed description

Type: Encapsulated transformer Model: TR Z00.35/09b II Power rating: 0.35VA Primary voltage: 230V (50Hz) Secondary voltage: 9V Secondary current: 39mA Thermal class: T70B Dimensions: 23x24x16mm
