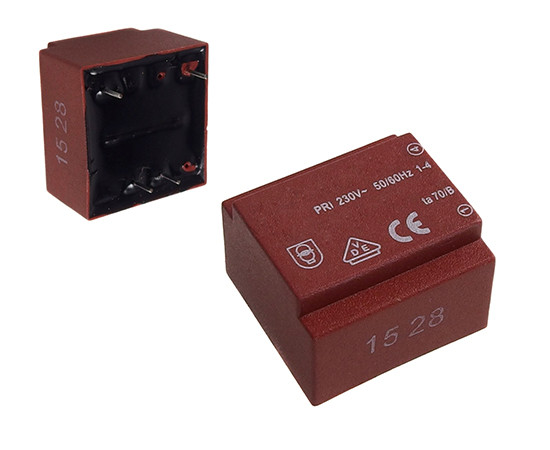

Encapsulated transformer; 0.35VA

Symbol Micros: TR Z00.35/2x15b II

112706

TR Z00.35/2x15b II

Contractor Symbol:

Case : Rys.TRZ00.352x15BII

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 0.35VA; 230V/2x15V; 2x12mA; Ta=70°C; H=16mm;

Parameters

VA power:	0,35VA
Input voltage:	230V
Secondary voltage 1:	15V
Secondary voltage 2:	15V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	0,35VA
Input voltage:	230V
Secondary voltage 1:	15V
Secondary voltage 2:	15V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	12mA
Secondary winding current 2:	12mA
