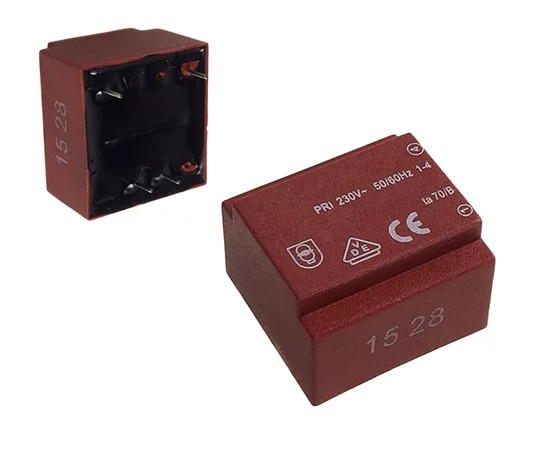

Encapsulated transformer; 0.5VA

Symbol Micros: TR Z00.50/24b II

112712

TR Z00.50/24b II

Contractor Symbol:

Case : Rys.TRZ00.5024BII

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 0.5VA; 230V/24V; 21mA; Ta=70°C; H=19,8mm;

Parameters

VA power:	0,5VA
Input voltage:	230V
Secondary voltage 1:	24V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	0,5VA
Input voltage:	230V
Secondary voltage 1:	24V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	21mA
