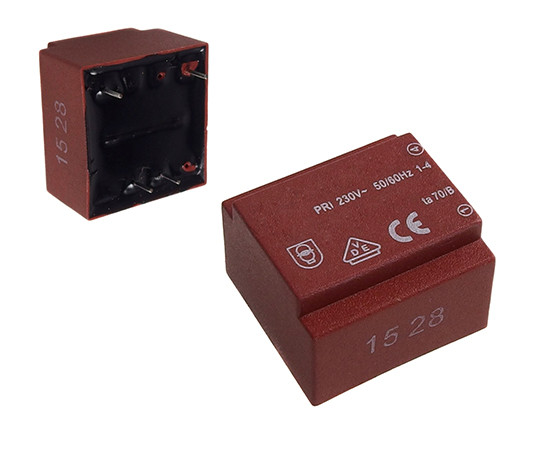

Encapsulated transformer; 0.5VA

Symbol Micros: TR Z00.50/2x18b II

112717

TR Z00.50/2x18b II

Contractor Symbol:

Case : Rys.TRZ00.502x18BII

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 0.5VA; 230V/2x18V; 2x14mA; Ta=70°C; H=19,8mm;

Parameters

VA power:	0,5VA
Input voltage:	230V
Secondary voltage 1:	18V
Secondary voltage 2:	18V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	0,5VA
Input voltage:	230V
Secondary voltage 1:	18V
Secondary voltage 2:	18V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	14mA
Secondary winding current 2:	14mA
