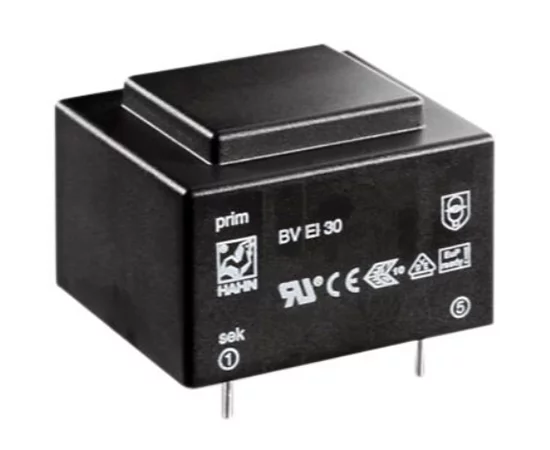

BV EI 302 2028 Hahn Encapsulated transformer

Symbol Micros: TR Z01.50/2x15b Hahn
Contractor Symbol:
Case : Rys.BV EI 302
Technical drawing Add to favourites
Encapsulated transformer; 1.5VA; 230V/2x15V; 2x50mA; Ta=70°C; H=21,8mm; equivalent: TR Z01.50/2x15b II; TR Z01.50/2x15b; TEZ 1,5/D/15-15V; 44335; TSZZ1.5/010MP
Parameters
VA power: 1,5VA
Input voltage: 230V
Secondary voltage 1: 15V
Secondary voltage 2: 15V
Secondary winding current 2: 50mA
Thermal class: 70°C
Mounting: PCB
Manufacturer:: HAHN Manufacturer part number: BVEI3022028 Case style: Rys.BV EI 302
External warehouse:
100 pcs.
Quantity of pcs. 5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 2,2832
Packaging:
5
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
VA power: 1,5VA
Input voltage: 230V
Secondary voltage 1: 15V
Secondary voltage 2: 15V
Secondary winding current 2: 50mA
Thermal class: 70°C
Mounting: PCB
Transformator type: Encapsulated transformer
Manufacturer: Hahn
Secondary winding current 1: 50mA
