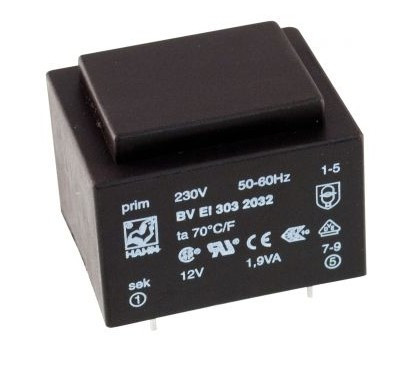

BV EI 303 2032 Hahn Encapsulated transformer

Symbol Micros: TR Z01.90/12b Hahn

271049

TR Z01.90/12b Hahn

Contractor Symbol:

Case : Rys.TRZ15

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 1.9VA; 230V/12V; 158mA; Ta=70°C; H=23,8mm; equivalent: TR Z01.90/12b

Parameters

Input voltage:	230V
Manufacturer:	Hahn
Mounting:	PCB
Secondary voltage 1:	12V
Secondary winding current 1:	158mA
Thermal class:	70°C
Transformator type:	Encapsulated transformer

All parameters

Manufacturer:: HAHN Manufacturer part number: BVEI3032032 Case style: Rys.TRZ15

External warehouse:

1775 pcs.

Quantity of pcs.	5+ (Please wait for the order confirmation)
Net price (EUR)	2,4957

Add to comparison tool Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

Manufacturer:: HAHN Manufacturer part number: BV EI 303 2032 Case style: Rys.TRZ15

External warehouse:

602 pcs.

Quantity of pcs.	50+ (Please wait for the order confirmation)
Net price (EUR)	2,4640

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Input voltage:	230V
Manufacturer:	Hahn
Mounting:	PCB
Secondary voltage 1:	12V
Secondary winding current 1:	158mA
Thermal class:	70°C
Transformator type:	Encapsulated transformer
VA power:	1,9VA
