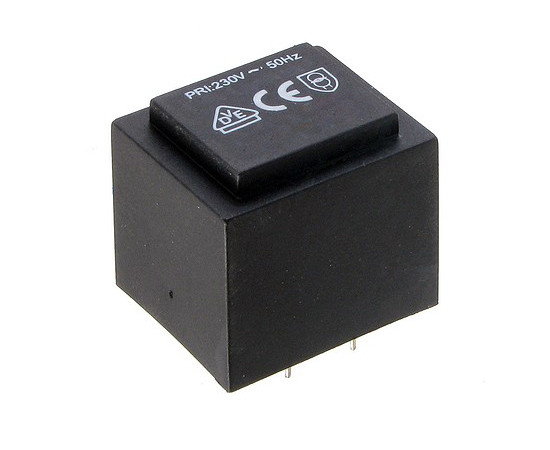

Encapsulated transformer; 2.5VA

Symbol Micros: TR Z02.50/09b

32828

TR Z02.50/09b

Contractor Symbol:

Case : Rys.TR2VA-1

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 2.5VA; 230V/9V; 278mA; Ta=70°C; H= 27,5mm;

Product description

Parameters

Input voltage:	230V
Manufacturer:	N/A
Mounting:	PCB
Secondary voltage 1:	9V
Secondary winding current 1:	278mA
Thermal class:	70°C
Transformator type:	Encapsulated transformer

All parameters

Manufacturer:: WHT Manufacturer part number:   Case style: Rys.TR2VA-1

In stock:

243 pcs.

Quantity of pcs.	1+	5+	30+	150+	300+
Net price (EUR)	2,5715	2,0421	1,8106	1,7327	1,7143

Add to comparison tool Add inquiry (RFQ)

Packaging:
30/150 Quantity (multiple: 1)

- +

• Parameters
• Description

Input voltage:	230V
Manufacturer:	N/A
Mounting:	PCB
Secondary voltage 1:	9V
Secondary winding current 1:	278mA
Thermal class:	70°C
Transformator type:	Encapsulated transformer
VA power:	2,5VA

Detailed description

Type: Encapsulated transformer Model: TR Z02.50/09b Power rating: 2.5VA Primary voltage: 230V (50Hz) Secondary voltage: 9V Secondary current: 278mA Thermal class: T70B Dimensions: 32.5x27.5x29.5mm
