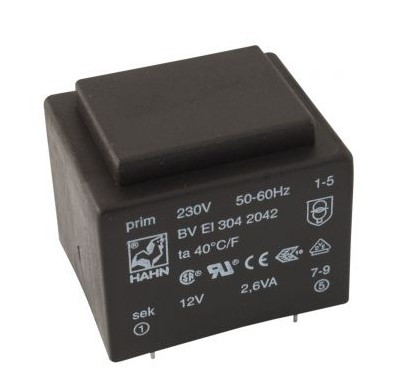

BV EI 304 2042 Hahn Encapsulated transformer

Symbol Micros: TR Z02.60/12b Hahn

271058

TR Z02.60/12b Hahn

Contractor Symbol:

Case : Rys.TRZ15

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 2.6VA; 230V/12V; 217mA; Ta=40°C; H=26,8mm;

Parameters

VA power:	2,6VA
Input voltage:	230V
Secondary voltage 1:	12V
Thermal class:	40°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	2,6VA
Input voltage:	230V
Secondary voltage 1:	12V
Thermal class:	40°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn
Secondary winding current 1:	217mA
