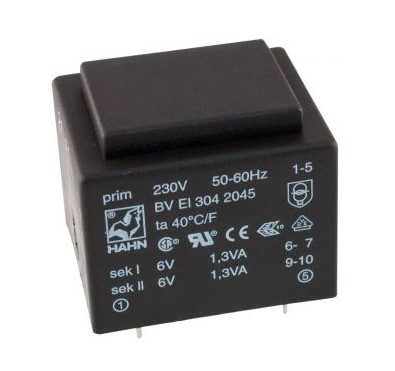

BV EI 304 2045 Hahn Encapsulated transformer

Symbol Micros: TR Z02.60/2x06b Hahn

271060

TR Z02.60/2x06b Hahn

Contractor Symbol:

Case : Rys.TRZ15

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 2.6VA; 230V/2x6V; 2x217mA; Ta=70°C; H=27,3mm;

Parameters

VA power:	2,6VA
Input voltage:	230V
Secondary voltage 1:	6V
Secondary voltage 2:	6V
Secondary winding current 2:	217mA
Thermal class:	70°C
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	2,6VA
Input voltage:	230V
Secondary voltage 1:	6V
Secondary voltage 2:	6V
Secondary winding current 2:	217mA
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn
Secondary winding current 1:	217mA
