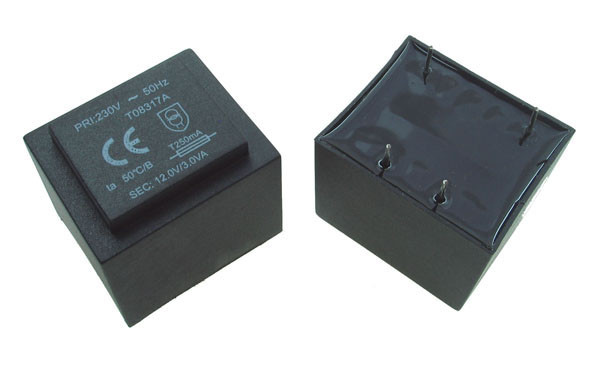

Encapsulated transformer; 3.0VA

Symbol Micros: TR Z03.00/12

21254

TR Z03.00/12

Contractor Symbol:

Case : Rys.T08317A

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 3.0VA; 230V/12V; 250mA; Ta=50°C; H=29,8mm equivalent: BV EI 305 2052; TR Z03.00/12b

Product description

Parameters

VA power:	3VA
Input voltage:	230V
Secondary voltage 1:	12V
Thermal class:	50°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A

All parameters

Manufacturer:: WHT Manufacturer part number:   Case style: Rys.T08317A

In stock:

24 pcs.

Quantity of pcs.	1+	3+	10+	30+	150+
Net price (EUR)	2,9618	2,5551	2,3166	2,1997	2,1156

Add to comparison tool Add inquiry (RFQ)

Packaging:
30/150 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-08-10

Quantity of pcs.: 450

• Parameters
• Description

VA power:	3VA
Input voltage:	230V
Secondary voltage 1:	12V
Thermal class:	50°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	250mA

Detailed description

Type: Encapsulated transformer Model: TR Z03.00/12 Power rating: 3.0VA Primary voltage: 230V (50Hz) Secondary voltage: 12V Secondary current: 250mA Thermal class: T50B Dimensions: 32.5x27.5x29.5mm
