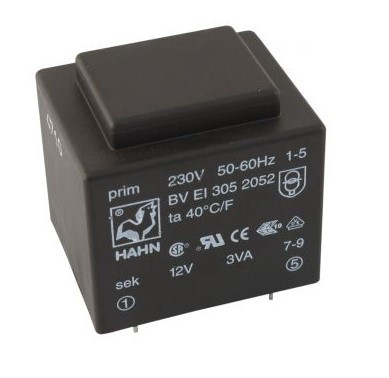

BV EI 305 2052 Hahn Encapsulated transformer

Symbol Micros: TR Z03.00/12b Hahn

271071

TR Z03.00/12b Hahn

Contractor Symbol:

Case : Rys.TRZ15

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 3.0VA; 230V/12V; 250mA; Ta=70°C; H=30mm; equivalent: TR Z03.00/12b; VN30.23/11283

Parameters

VA power:	3VA
Input voltage:	230V
Secondary voltage 1:	12V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	3VA
Input voltage:	230V
Secondary voltage 1:	12V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn
Secondary winding current 1:	250mA
