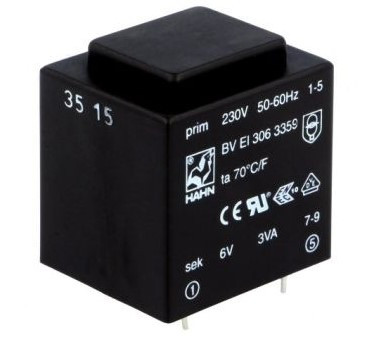

BV EI 306 3365 Hahn Encapsulated transformer

Symbol Micros: TR Z03.00/12b IIHahn

271072

TR Z03.00/12b IIHahn

Contractor Symbol:

Case : Rys.TRZ15

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 3.0VA; 230V/12V; 250mA; Ta=70°C; H=34mm equivalent: TR Z03.00/12b

Parameters

Input voltage:	230V
Manufacturer:	Hahn
Mounting:	PCB
Secondary voltage 1:	12V
Secondary winding current 1:	250mA
Thermal class:	70°C
Transformator type:	Encapsulated transformer

All parameters

Manufacturer:: HAHN Manufacturer part number: BV EI 306 3365 Case style: Rys.TRZ15

External warehouse:

87 pcs.

Quantity of pcs.	50+ (Please wait for the order confirmation)
Net price (EUR)	2,4383

Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Input voltage:	230V
Manufacturer:	Hahn
Mounting:	PCB
Secondary voltage 1:	12V
Secondary winding current 1:	250mA
Thermal class:	70°C
Transformator type:	Encapsulated transformer
VA power:	3VA
