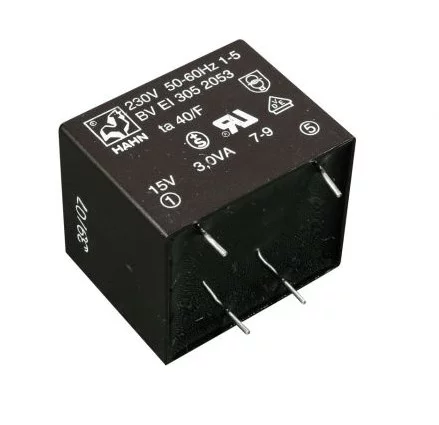

VN30.23/11284 Marschner Encapsulated transformer

Symbol Micros: TR Z03.00/15b MAR
Contractor Symbol:
Case : Rys.VN30.23
Add to favourites
Encapsulated transformer; 3.0VA; 230V/15V; 200mA; Ta=70°C; H=34mm; equivalent: BV EI 305 2053; TR Z03.00/15b
Parameters
VA power: 3VA
Input voltage: 230V
Secondary voltage 1: 15V
Thermal class: 70°C
Mounting: PCB
Transformator type: Encapsulated transformer
Manufacturer: Marschner


Item available on request
VA power: 3VA
Input voltage: 230V
Secondary voltage 1: 15V
Thermal class: 70°C
Mounting: PCB
Transformator type: Encapsulated transformer
Manufacturer: Marschner
Secondary winding current 1: 200mA
