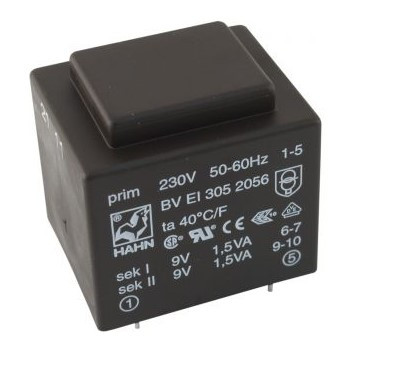

BV EI 305 2056 Hahn Encapsulated transformer

Symbol Micros: TR Z03.00/2x09b Hahn

271074

TR Z03.00/2x09b Hahn

Contractor Symbol:

Case : Rys.TRZ15

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 3.0VA; 230V/2x9V; 2x167mA; Ta=70°C; H=30mm; equivalent: TR Z03.00/2x09b

Parameters

VA power:	3VA
Input voltage:	230V
Secondary voltage 1:	9V
Secondary voltage 2:	12V
Secondary winding current 2:	167mA
Thermal class:	70°C
Mounting:	PCB

All parameters

Manufacturer:: HAHN Manufacturer part number: BVEI3052056 Case style: Rys.TRZ15

External warehouse:

130 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,7406

Add to comparison tool Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

VA power:	3VA
Input voltage:	230V
Secondary voltage 1:	9V
Secondary voltage 2:	12V
Secondary winding current 2:	167mA
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn
Secondary winding current 1:	167mA
