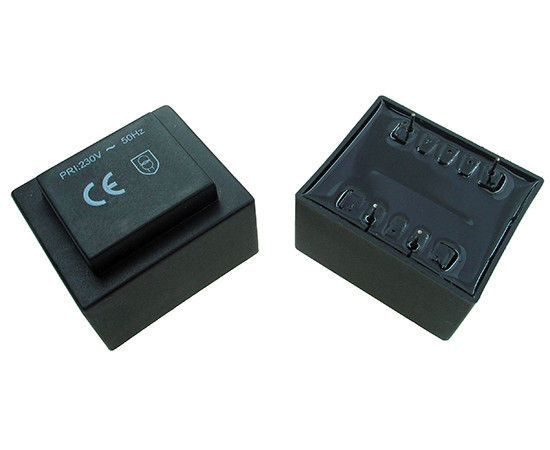

Encapsulated transformer; 4VA

Symbol Micros: TR Z04.00/09b

26861

TR Z04.00/09b

Contractor Symbol:

Case : Rys.TR3.2VA-1

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 4VA; 230V/9V; 444mA; Ta=70°C; H=28,5mm

Product description

Parameters

VA power:	4VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A

All parameters

Manufacturer:: WHT Manufacturer part number:   Case style: Rys.TR3.2VA-1

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	3,1521	2,7082	2,5367	2,4451	2,4240

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-01-08

Quantity of pcs.: 620

• Parameters
• Description

VA power:	4VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	444mA

Detailed description

Type: Encapsulated transformer Model: TR Z04.00/9b Power rating: 4.0VA Primary voltage: 230V (50Hz) Secondary voltage: 9V Secondary current: 444mA Thermal class: T70B Dimensions: 41x35x28.5mm
