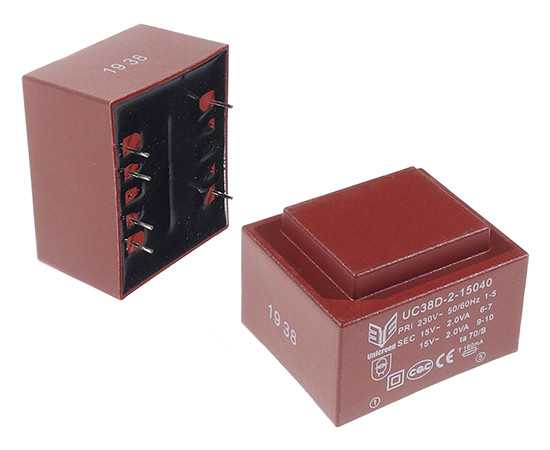

Encapsulated transformer; 4VA

Symbol Micros: TR Z04.00/2x15b II

248756

TR Z04.00/2x15b II

Contractor Symbol:

Case : Rys.TR Z04.00215bII

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 4VA; 230V/2x15V; 133mA; Ta=70°C; H=27,8mm equivalent: TEZ4/D/15-15V

Parameters

VA power:	4VA
Input voltage:	230V
Secondary voltage 1:	15V
Secondary voltage 2:	15V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer

All parameters

Manufacturer:: UCD Manufacturer part number:   Case style: Rys.TR Z04.00215bII

In stock:

160 pcs.

Quantity of pcs.	1+	5+	20+	80+	160+
Net price (EUR)	3,1414	2,6966	2,5234	2,4391	2,4157

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/80 Quantity (multiple: 1)

- +

• Parameters

VA power:	4VA
Input voltage:	230V
Secondary voltage 1:	15V
Secondary voltage 2:	15V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	133mA
