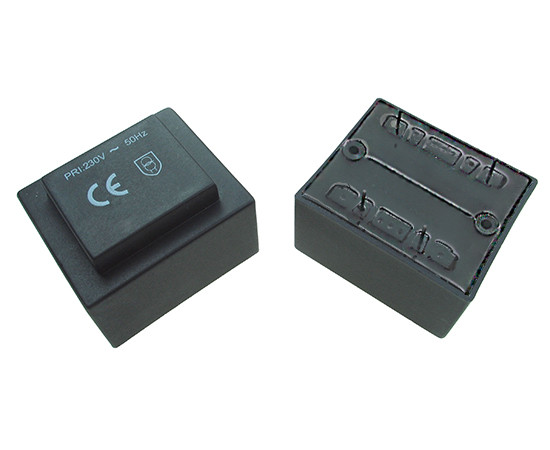

Encapsulated transformer; 4.5VA

Symbol Micros: TR Z04.50/06b

67956

TR Z04.50/06b

Contractor Symbol:

Case : Rys.TR5.0VA-1

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 4.5VA; 230V/6V; 750mA; Ta=70°C; H=32,3mm

Product description

Parameters

VA power:	4,5VA
Input voltage:	230V
Secondary voltage 1:	6V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A

All parameters

Manufacturer:: WHT Manufacturer part number:   Case style: Rys.TR5.0VA-1

In stock:

500 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,6407	2,0970	1,8946	1,7934	1,7605

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +

• Parameters
• Description

VA power:	4,5VA
Input voltage:	230V
Secondary voltage 1:	6V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	750mA

Detailed description

Type: Encapsulated transformer Model: TR Z04.50/06b Power rating: 4.5VA Primary voltage: 230V (50Hz) Secondary voltage: 6V Secondary current: 750mA Thermal class: T70B Dimensions: 44.3x37x32.3mm
