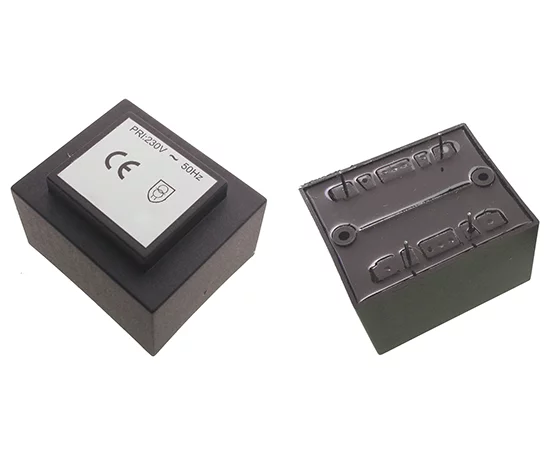

Encapsulated transformer; 10VA

Symbol Micros: TR Z10.00/2x12b

24410

TR Z10.00/2x12b

Contractor Symbol:

Case : Rys.TR10VA-1

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 10VA; 230V/2x12V; 2x417mA; Ta=70°C; H=34,8mm; equivalent: BV EI 481 1327; V48.16/16450

Parameters

VA power:	10VA
Input voltage:	230V
Secondary voltage 1:	12V
Secondary voltage 2:	12V
Secondary winding current 2:	417mA
Thermal class:	70°C
Mounting:	PCB

All parameters

Manufacturer:: WHT Manufacturer part number:   Case style: Rys.TR10VA-1

In stock:

110 pcs.

Quantity of pcs.	1+	5+	20+	60+	180+
Net price (EUR)	5,1767	4,4483	4,1645	4,0486	3,9824

Add to comparison tool Add inquiry (RFQ)

Packaging:
60 Quantity (multiple: 1)

- +

• Parameters

VA power:	10VA
Input voltage:	230V
Secondary voltage 1:	12V
Secondary voltage 2:	12V
Secondary winding current 2:	417mA
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	417mA
