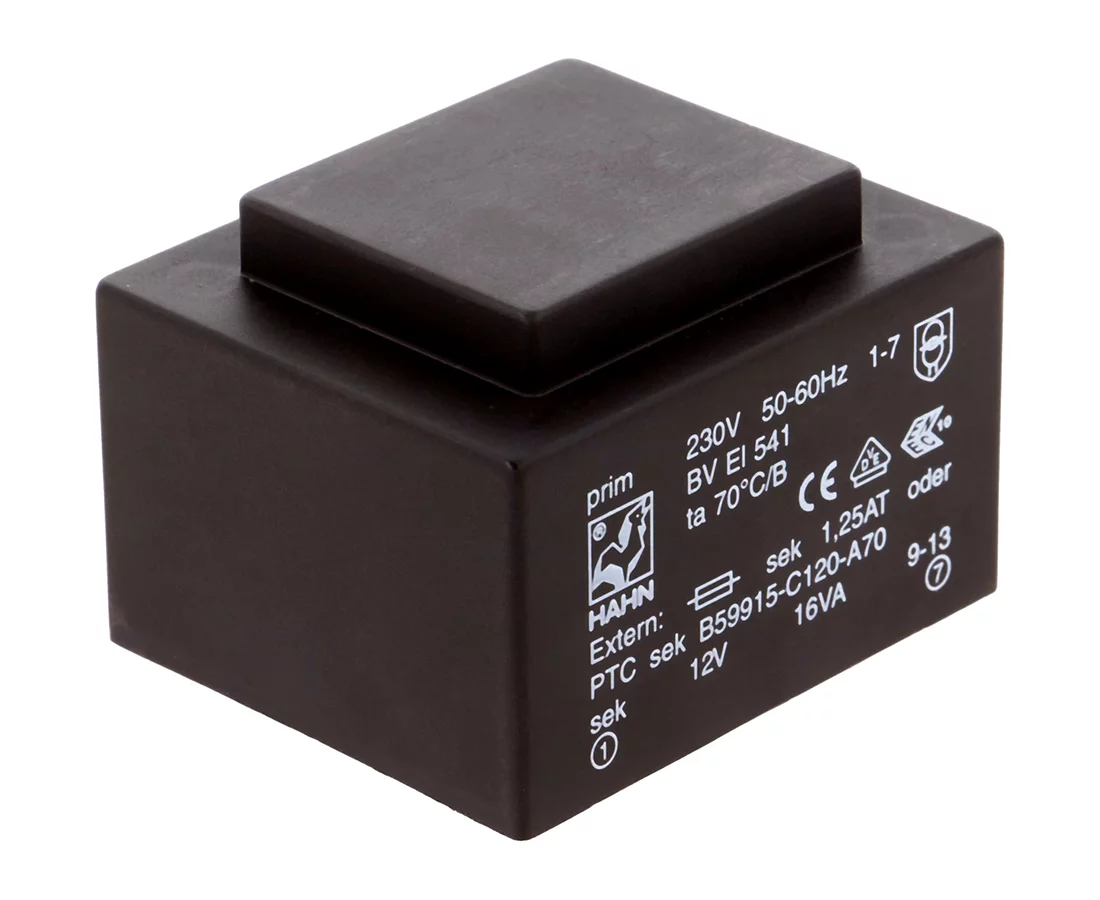

BV EI 541 1211 Hahn Encapsulated transformer

Symbol Micros: TR Z16.00/12b Hahn

400114

TR Z16.00/12b Hahn

Contractor Symbol:

Case : Rys.BVEI541

Datasheet

Add to favourites

Encapsulated transformer; 16VA; 230V/12V; 1333mA; Ta=70°C; H=38,8mm; equivalent: TEZ16,0/D230/12V; TR Z16.00/12b; V54.18/17302

Parameters

VA power:	16VA
Input voltage:	230V
Secondary voltage 1:	12V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

VA power:	16VA
Input voltage:	230V
Secondary voltage 1:	12V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	Hahn
Secondary winding current 1:	1333mA
