SIL2308-TP

Symbol Micros: TSIL2308-TP

396774

TSIL2308-TP

Contractor Symbol:

Case : SOT23-6L

Datasheet

Add to favourites

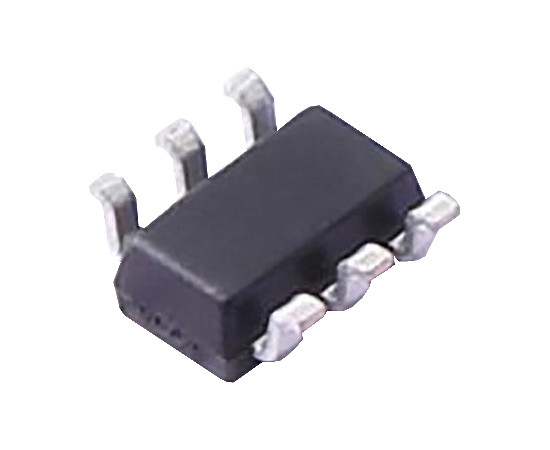

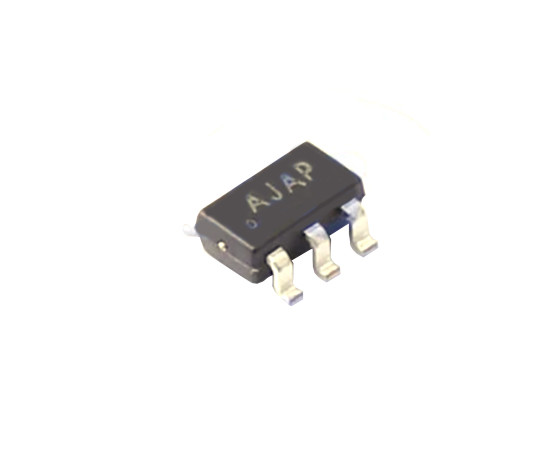

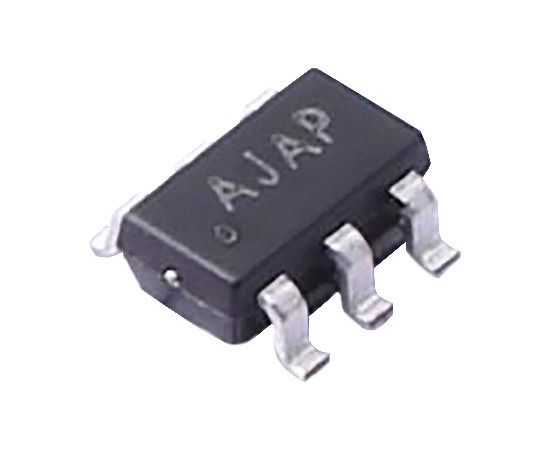

Transistor Dual N/P-Channel MOSFET; 20V; +/-8V; +/-12V; 38mOhm; 5A/4A; -55°C~150°C; Substitute: SIL2308-TP-HF;

Parameters

Open channel resistance:	38mOhm
Max. drain current:	5A
Case:	SOT23-6L
Manufacturer:	MCC
Max. drain-source voltage:	20V
Transistor type:	2xN/P-MOSFET
Max. gate-source Voltage:	12V

All parameters

Manufacturer:: Micro Commercial Components Corp. Manufacturer part number: SIL2308-TP RoHS Case style: SOT23-6L Datasheet

In stock:

3000 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,2086	0,1154	0,0767	0,0638	0,0596

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	38mOhm
Max. drain current:	5A
Case:	SOT23-6L
Manufacturer:	MCC
Max. drain-source voltage:	20V
Transistor type:	2xN/P-MOSFET
Max. gate-source Voltage:	12V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
