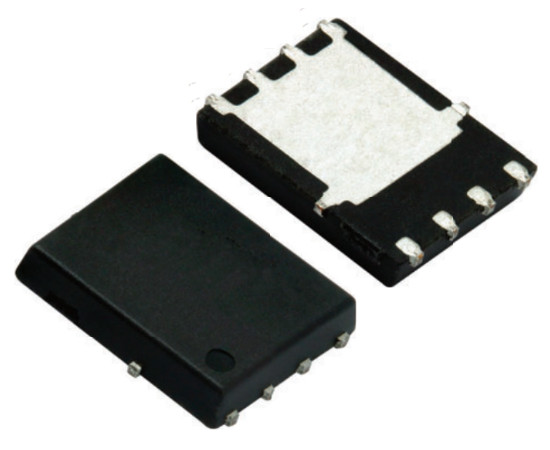

SIR872DP-T1-GE3 Vishay Siliconix

Symbol Micros: TSIR872dp

257408

TSIR872dp

Contractor Symbol:

Case : PPAK-SO8

Datasheet

Technical drawing Add to favourites

MOSFET N-CH 150V 53.7A PPAK SO-8

Parameters

Open channel resistance:	20mOhm
Max. drain current:	53,7A
Max. power loss:	6,25W
Case:	PPAK-SO8
Manufacturer:	VISHAY
Max. drain-source voltage:	150V
Max. gate-source Voltage:	20V

All parameters

Manufacturer:: Vishay Manufacturer part number: SIR872DP-T1-GE3 Case style: PPAK-SO8

External warehouse:

3000 pcs.

Quantity of pcs.	3000+ (Please wait for the order confirmation)
Net price (EUR)	1,0274

Add inquiry (RFQ)

Packaging:
3000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Open channel resistance:	20mOhm
Max. drain current:	53,7A
Max. power loss:	6,25W
Case:	PPAK-SO8
Manufacturer:	VISHAY
Max. drain-source voltage:	150V
Max. gate-source Voltage:	20V
Transistor type:	N-MOSFET
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
