SISS05DN-T1-GE3

Symbol Micros: TSISS05dn

310904

TSISS05dn

Contractor Symbol:

Case : PPAK1212

Datasheet

Technical drawing Add to favourites

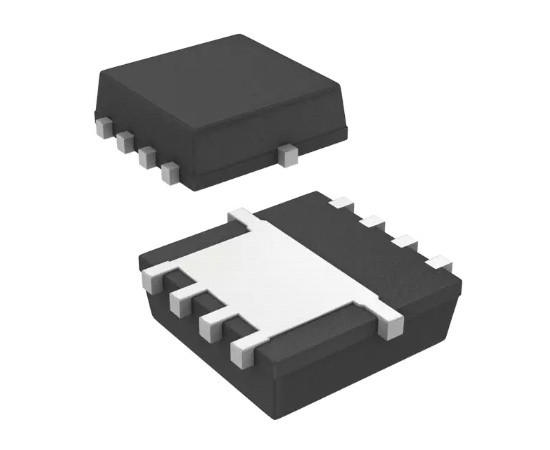

Trans MOSFET P-CH 30V 29.4A 8-Pin PowerPAK 1212-S EP

Parameters

Open channel resistance:	5,8mOhm
Max. drain current:	108A
Max. power loss:	65,7W
Case:	PPAK1212
Manufacturer:	VISHAY
Max. drain-source voltage:	30V
Transistor type:	P-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	5,8mOhm
Max. drain current:	108A
Max. power loss:	65,7W
Case:	PPAK1212
Manufacturer:	VISHAY
Max. drain-source voltage:	30V
Transistor type:	P-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
