SISS52DN-T1-GE3

Symbol Micros: TSISS52DN-T1-GE3

395611

TSISS52DN-T1-GE3

Contractor Symbol:

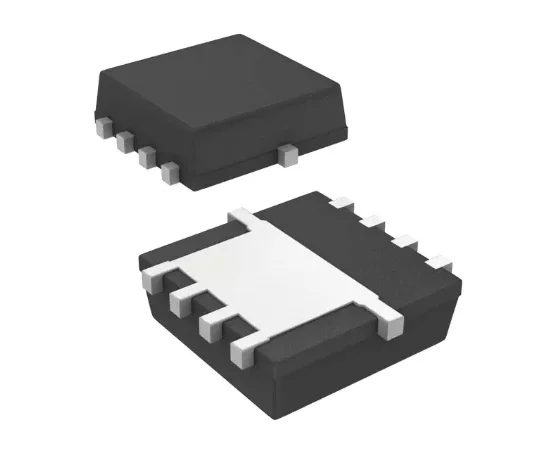

Case : PPAK1212

Datasheet

Technical drawing Add to favourites

N-CHANNEL 30-V (D-S) MOSFET POWE Transistors - FETs, MOSFETs - Single

Parameters

Open channel resistance:	1,9mOhm
Max. power loss:	4,8W
Max. drain current:	47,1A
Case:	PPAK1212-8S
Manufacturer:	VISHAY
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: Vishay Manufacturer part number: SISS52DN-T1-GE3 Case style: PPAK1212

External warehouse:

10 pcs.

Quantity of pcs.	1+ (Please wait for the order confirmation)
Net price (EUR)	0,4421

Add to comparison tool Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Open channel resistance:	1,9mOhm
Max. power loss:	4,8W
Max. drain current:	47,1A
Case:	PPAK1212-8S
Manufacturer:	VISHAY
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	16V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
