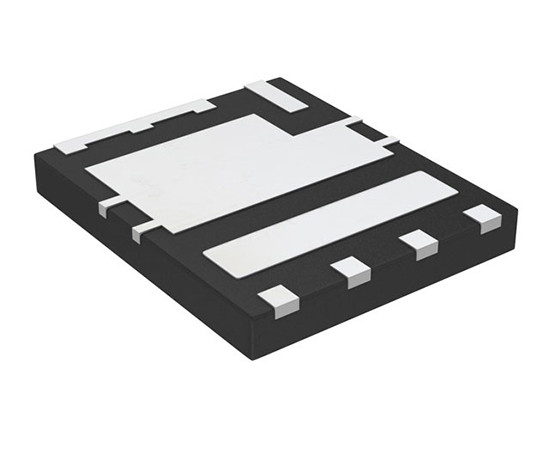

SIZF300DT

Symbol Micros: TSIZF300dt

287554

TSIZF300dt

Contractor Symbol:

Case : PPAIR6(3x3)

Datasheet

Add to favourites

Transistor N-Channel MOSFET; 30V; 75A; 4,5mOhm; 20V; 75W; -55°C ~ 150°C; SIZF300DT-T1-GE3

Parameters

Power dissipation:	75W
Manufacturer:	VISHAY
Case:	PowerPAIR3x3-4
Max. collector current:	75A
Max collector-emmiter voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	N-MOSFET

All parameters

Manufacturer:: Vishay Manufacturer part number: SIZF300DT-T1-GE3 RoHS Case style: PPAIR6(3x3) Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,2294	0,8180	0,6770	0,6112	0,5853

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Power dissipation:	75W
Manufacturer:	VISHAY
Case:	PowerPAIR3x3-4
Max. collector current:	75A
Max collector-emmiter voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	N-MOSFET
