SKQ50N03BD SHIKUES

Symbol Micros: TSKQ50N03bd

331686

TSKQ50N03bd

Contractor Symbol:

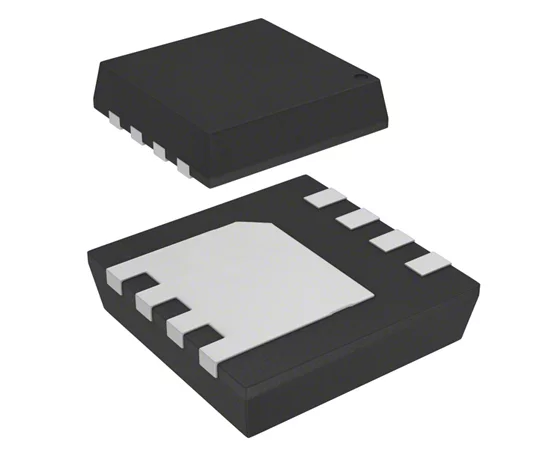

Case : DFN08(3.3x3.3)

Datasheet

Technical drawing Add to favourites

Transistor N-Channel MOSFET; 30V; 20V; 8mOhm; 50A; 30W; -55°C ~ 175°C;

Parameters

Open channel resistance:	8mOhm
Max. drain current:	50A
Max. power loss:	30W
Case:	DFN08(3.3x3.3)
Manufacturer:	SHIKUES
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: SHIKUES Manufacturer part number: SKQ50N03BD RoHS Case style: DFN08(3.3x3.3) Datasheet

In stock:

200 pcs.

Quantity of pcs.	3+	10+	50+	200+	1000+
Net price (EUR)	0,3052	0,1941	0,1362	0,1181	0,1106

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	8mOhm
Max. drain current:	50A
Max. power loss:	30W
Case:	DFN08(3.3x3.3)
Manufacturer:	SHIKUES
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
