SSM6N951L,EFF

Symbol Micros: TSSM6N951L,EFF

389366

TSSM6N951L,EFF

Contractor Symbol:

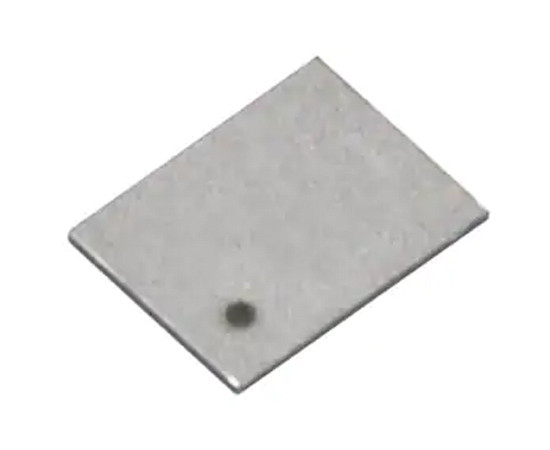

Case : TCSPA6 (2.14x1.67)

Datasheet

Technical drawing Add to favourites

SMALL SIGNAL MOSFET RDSON: 4.4MO Transistors - FETs, MOSFETs - Arrays

Parameters

Open channel resistance:	5,1mOhm
Max. drain current:	8A
Max. power loss:	700mW
Case:	TCSPA (2,14x1,67)
Max. drain-source voltage:	12V
Transistor type:	2xN-MOSFET
Max. gate-source Voltage:	8V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	5,1mOhm
Max. drain current:	8A
Max. power loss:	700mW
Case:	TCSPA (2,14x1,67)
Max. drain-source voltage:	12V
Transistor type:	2xN-MOSFET
Max. gate-source Voltage:	8V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
