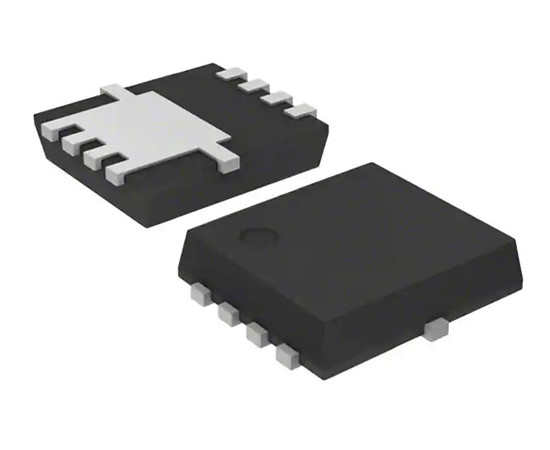

XPH6R30ANB,L1XHQ

Symbol Micros: TXPH6R30ANB,L1XHQ

346306

TXPH6R30ANB,L1XHQ

Contractor Symbol:

Case : SOP08 Advance (5x5)

Datasheet

Add to favourites

N-Channel 100V 45A (Ta) 960mW (Ta), 132W (Tc) Surface Mount 8-SOP Advance (5x5)

Parameters

Open channel resistance:	9,5mOhm
Max. power loss:	132W
Max. drain current:	45A
Case:	SOP08 Advance (5x5)
Manufacturer:	TOSHIBA
Max. drain-source voltage:	100V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	9,5mOhm
Max. power loss:	132W
Max. drain current:	45A
Case:	SOP08 Advance (5x5)
Manufacturer:	TOSHIBA
Max. drain-source voltage:	100V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
