ADM3101EACPZ Analog Devices

Symbol Micros: UIADM3101eacpz

98755

UIADM3101eacpz

Contractor Symbol:

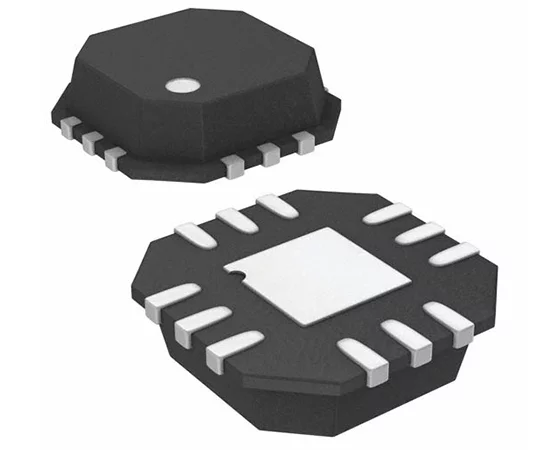

Case : LFCSP12

Datasheet

Technical drawing Add to favourites

RS-232 Transceiver, 1-Drv / 1-Rcv, 460kbps, 4x 0.1uF, +/-15kV ESD, 3.3/5.5V ADM3101EACPZ-250R7 (250pcs/reel), ADM3101EACPZ-REEL (5000pcs/reel)

Parameters

Number of drivers:	1
Number of receivers:	1
Operating temperature (range):	-40°C ~ 85°C
Propagation time:	400ns
Supply voltage:	3V~5,5V
Transmission speed:	460kbps

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-10-22

Quantity of pcs.: 100

• Parameters

Number of drivers:	1
Number of receivers:	1
Operating temperature (range):	-40°C ~ 85°C
Propagation time:	400ns
Supply voltage:	3V~5,5V
Transmission speed:	460kbps
