ADUM4223ARWZ

Symbol Micros: UIADUM4223arwz

99157

UIADUM4223arwz

Contractor Symbol:

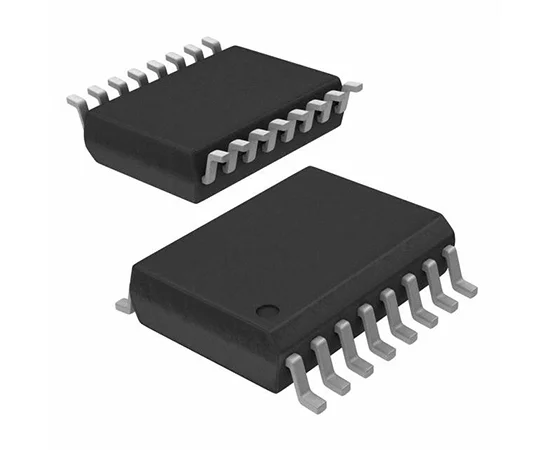

Case : SOIC16

Datasheet

Technical drawing Add to favourites

Digital Isolator 2-Channel; Vrms 5000V; 59ns; 50kV/us; 3V~18V; -40°C~125°C; ADUM4223ARWZ-RL;

Parameters

Propagation time:	59ns
Case:	SOIC16
Nominal voltage:	3V ~ 18V
Speed:	1Mbps
Manufacturer:	ANALOG DEVICES
Channel configuration:	2/2
Insulation breakdown voltage:	5000V

All parameters

Manufacturer:: AD - Analog Devices Manufacturer part number: ADUM4223ARWZ RoHS Case style: SOIC16 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,2075	3,5417	3,1426	2,9443	2,8239

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Propagation time:	59ns
Case:	SOIC16
Nominal voltage:	3V ~ 18V
Speed:	1Mbps
Manufacturer:	ANALOG DEVICES
Channel configuration:	2/2
Insulation breakdown voltage:	5000V
Number of channels:	2
Operating temperature (range):	-40°C ~ 125°C
Polarisation:	Unilateral
