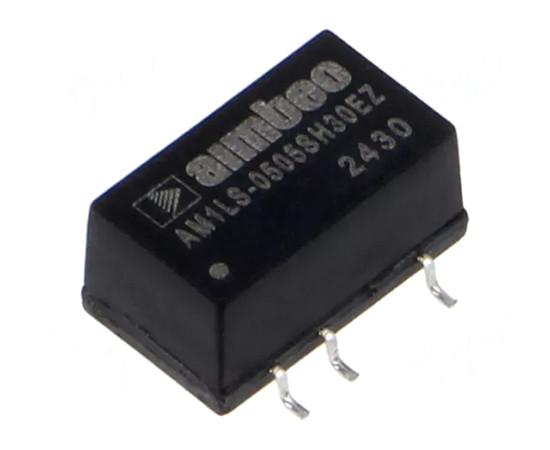

AM1LS-0505SH30EZ AIMTEC

Symbol Micros: UIAM1LS0505sh30ez

525891

UIAM1LS0505sh30ez

Contractor Symbol:

Case : Rys.AM1LS-xxxxSH30EZ

Datasheet

Technical drawing Add to favourites

Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 5VDC; Iout: 200mA; SMD

Parameters

Output current [A]:	0,2A
Input voltage range:	4.5V ~ 5.5V
Efficiency:	82%
Power:	1W
Output current 1:	200mA
Input voltage:	5V
Insulation breakdown voltage:	3000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Output current [A]:	0,2A
Input voltage range:	4.5V ~ 5.5V
Efficiency:	82%
Power:	1W
Output current 1:	200mA
Input voltage:	5V
Insulation breakdown voltage:	3000V
Output voltage [V]:	5V
Secondary voltage 1:	5V
