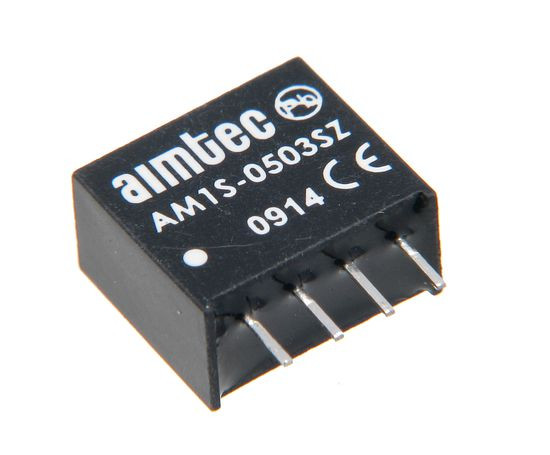

AM1S-0503SZ

Symbol Micros: UIAM1S0503sz

45593

UIAM1S0503sz

Contractor Symbol:

Case : Rys.AM1SxxxxS

Datasheet

Technical drawing Add to favourites

1W DC-DC Converter, Single, Vin 5V, Vout 3.3V, 300mA, 1000VDC, EFF72% Replacement: DBE1-0510

Product description

Parameters

Output current [A]:	300mA
Power:	1W
Input voltage:	5V
Insulation breakdown voltage:	1000V
Output voltage [V]:	3,3V

All parameters

Manufacturer:: AIMTEC Manufacturer part number: AM1S-0503SZ Case style: Rys.AM1SxxxxS

External warehouse:

280 pcs.

Quantity of pcs.	80+ (Please wait for the order confirmation)
Net price (EUR)	2,2081

Add inquiry (RFQ)

Packaging:
40

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters
• Description

Output current [A]:	300mA
Power:	1W
Input voltage:	5V
Insulation breakdown voltage:	1000V
Output voltage [V]:	3,3V

Detailed description

Micros Part Number

UIAM1S0503sz

Manufacturer Part Number

AM1S-0503SZ

Wattage

1W

Max output current

0.3A

Output Type

Single

Input Voltage

5VDC

Output Voltage

3.3V, ±5%. max.

Input Output Isolation (VDC)

1K

Package

SIP4

Temperature range

-40°C to +85°C
