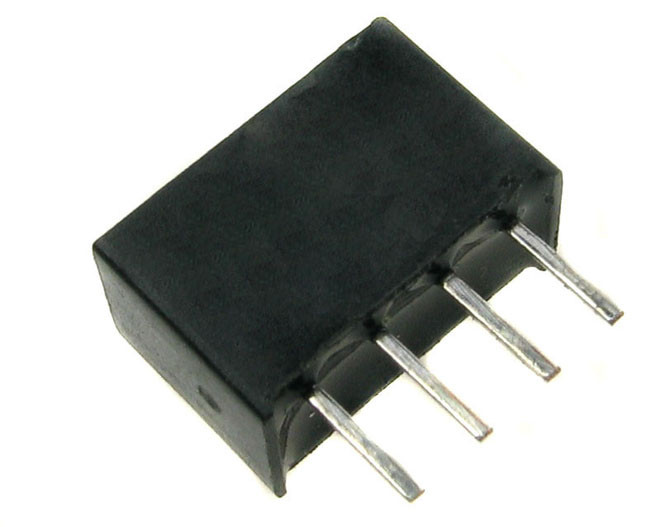

AM2S-1212SZ

Symbol Micros: UIAM2S1212sz

113612

UIAM2S1212sz

Contractor Symbol:

Case : SIP 4

Datasheet

Technical drawing Add to favourites

2W DC-DC Converter; Single; Vin 10,8V~13,2V; Vout 12V; 160mA; 1000VDC; EFF84%; Substitute: PAIRUI DBE2-1213; TPPOWER TPL1212S;

Parameters

Output current:	160mA
Input voltage range:	10,8V ~ 13,2V
Efficiency:	84%
Power:	2,0W
Input voltage:	12V
Insulation breakdown voltage:	1000V
Output voltage:	12V

All parameters

Manufacturer:: PAIRUI Manufacturer part number: DBE2-1213 RoHS Case style: SIP 4 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,4338	3,0526	2,8243	2,7089	2,6407

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Output current:	160mA
Input voltage range:	10,8V ~ 13,2V
Efficiency:	84%
Power:	2,0W
Input voltage:	12V
Insulation breakdown voltage:	1000V
Output voltage:	12V
