AM3N-1212D-RZ

Symbol Micros: UIAM3N1212d-rz

46272

UIAM3N1212d-rz

Contractor Symbol:

Case : Rys.AM3N-xxxxDR

Datasheet

Technical drawing Add to favourites

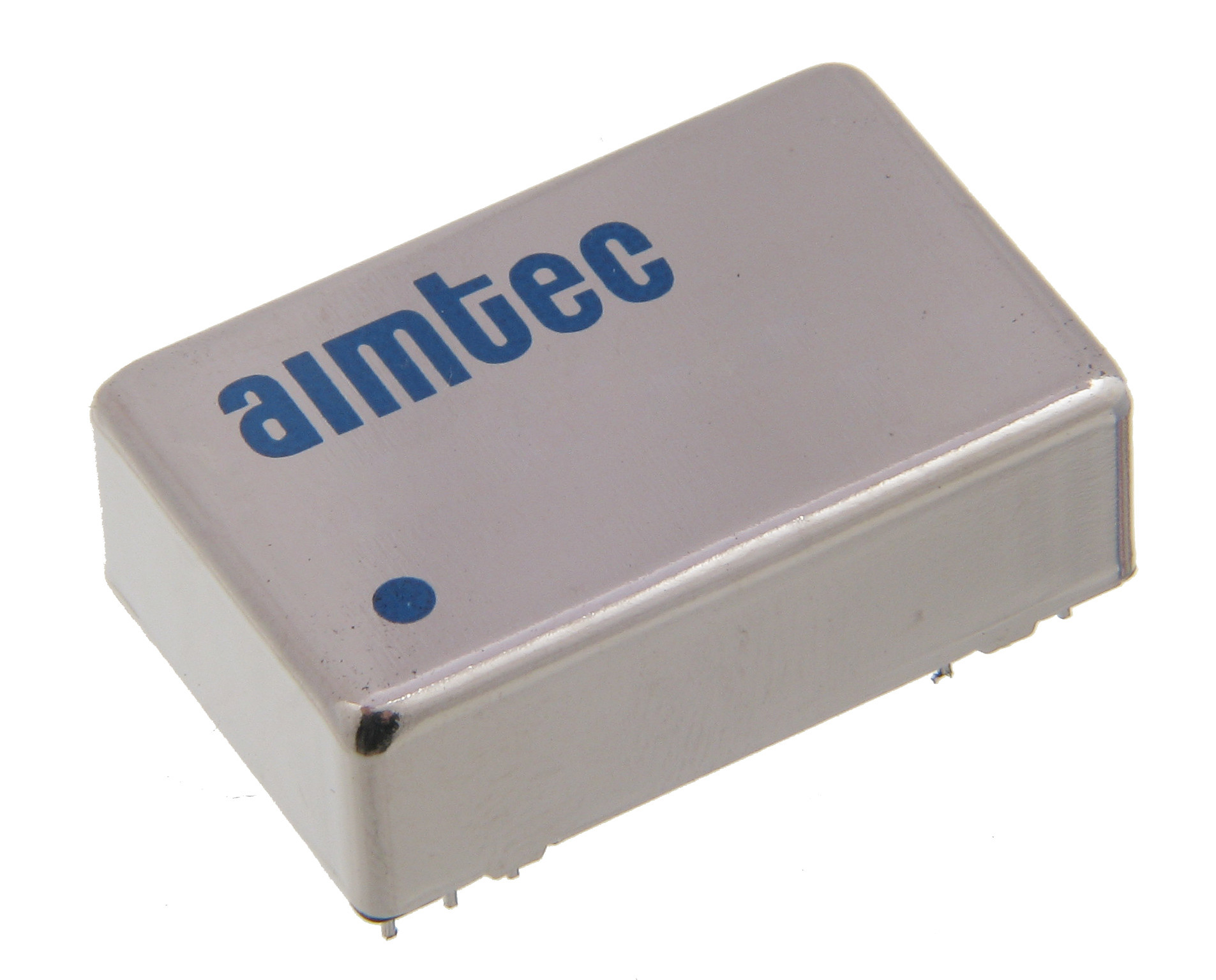

3W DC-DC Converter, Dual, Vin 12V, Vout +-12V, +-125mA, 1000VDC, EFF80%

Product description

Parameters

Output current:	125mA
Power:	3,0W
Output voltage range [V]:	+- 12V
Input voltage:	12V
Insulation breakdown voltage:	1000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Output current:	125mA
Power:	3,0W
Output voltage range [V]:	+- 12V
Input voltage:	12V
Insulation breakdown voltage:	1000V

Detailed description

Micros Part Number

UIAM3N1212d-rz

Manufacturer Part Number

AM3N-1212D-RZ

Wattage

3W

Max output current

±0.125A

Output Type

Dual

Input Voltage

12VDC

Output Voltage

12V, -12V, ±2%. max.

Input Output Isolation (VDC)

1K

Package

DIP24

Temperature range

-40°C to +85°C
