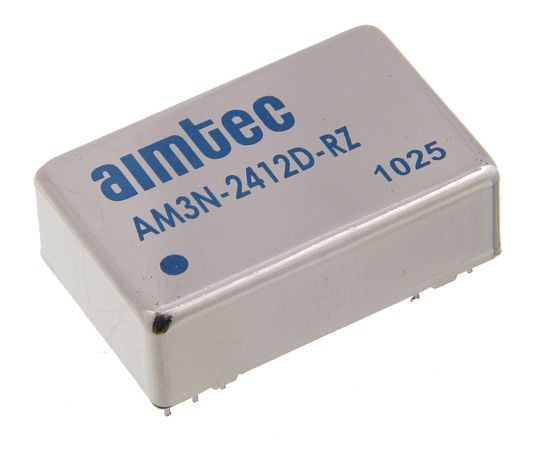

AM3N-2412D-RZ

Symbol Micros: UIAM3N2412drz

44743

UIAM3N2412drz

Contractor Symbol:

Case : Rys.AM3N-xxxxDR

Datasheet

Technical drawing Add to favourites

3W DC-DC Converter, Dual, Vin 24V, Vout +-12V, +-125mA, 1000VDC, EFF80%

Product description

Parameters

Output current:	125mA
Power:	3,0W
Output voltage range [V]:	+- 12V
Input voltage:	24V
Insulation breakdown voltage:	1000V

All parameters

Manufacturer:: AIMTEC Manufacturer part number: AM3N-2412D-RZ Case style: Rys.AM3N-xxxxDR

External warehouse:

40 pcs.

Quantity of pcs.	10+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	16,4401

Add inquiry (RFQ)

Packaging:
10

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters
• Description

Output current:	125mA
Power:	3,0W
Output voltage range [V]:	+- 12V
Input voltage:	24V
Insulation breakdown voltage:	1000V

Detailed description

Micros Part Number

UIAM3N2412drz

Manufacturer Part Number

AM3N-2412D-RZ

Wattage

3W

Max output current

±0.125A

Output Type

Dual

Input Voltage

24VDC

Output Voltage

12V, -12V, ±2%. max.

Input Output Isolation (VDC)

1K

Package

DIP24

Temperature range

-40°C to +85°C
