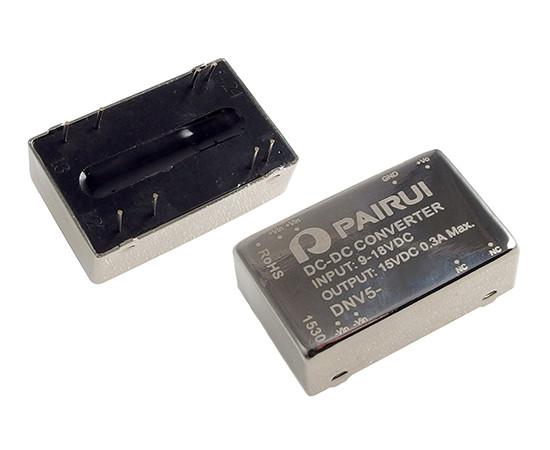

DNV5-1213MF PAIRUI

Symbol Micros: UIAM5T1215sh35z c

99725

UIAM5T1215sh35z c

Contractor Symbol:

Case : Rys.DNV5-xxxxMF

Datasheet

Technical drawing Add to favourites

DC-DC Converter; Isolated; Single Output; 5W; 330mA; 15V; 1,5kV; 9V~18V; -40°C~85°C; EFF 82%; Substitute: AM5T-1215SH35Z;

Parameters

Input voltage range:	9V ~ 18V
Output current:	330mA
Output voltage range [V]:	15V
Efficiency:	82%
Power:	5W
Input voltage:	12V
Output current 1:	330mA

All parameters

Manufacturer:: PAIRUI Manufacturer part number: DNV5-1213MF RoHS Case style: Rys.DNV5-xxxxMF Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	10,8890	10,4568	10,1468	9,8673	9,7217

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	9V ~ 18V
Output current:	330mA
Output voltage range [V]:	15V
Efficiency:	82%
Power:	5W
Input voltage:	12V
Output current 1:	330mA
Output voltage:	15V
Insulation breakdown voltage:	1500V
Secondary voltage 1:	15V
