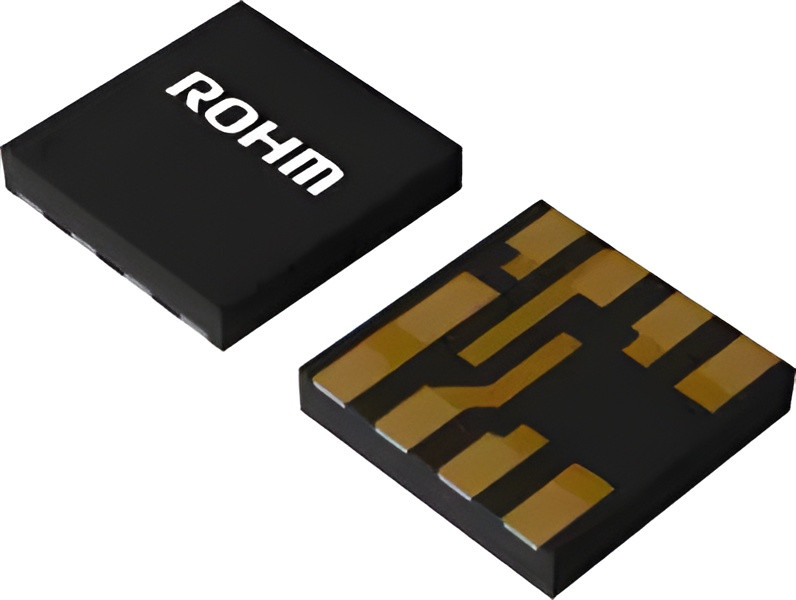

BD9F500QUZ-E2

Symbol Micros: UIBD9f500quz

503144

UIBD9f500quz

Contractor Symbol:

Case : VMMP16LZ3030

Datasheet

Technical drawing Add to favourites

Synchronous Step-Down Switching Regulator, 5A, Vin 4.5÷36V, Vout 0.6÷14V, 2.2MHz

Parameters

Case:	VMMP16LZ3030
Dimensions:	3x3x0.40mm
Input voltage range:	4.5V ~ 36V
Integrated circuit type:	Switching regulator
Manufacturer:	ROHM
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: ROHM - Japan Manufacturer part number: BD9F500QUZ-E2 RoHS Case style: VMMP16LZ3030 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,5053	1,9891	1,7987	1,7000	1,6702

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Case:	VMMP16LZ3030
Dimensions:	3x3x0.40mm
Input voltage range:	4.5V ~ 36V
Integrated circuit type:	Switching regulator
Manufacturer:	ROHM
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
