BQ24075RGTR

Symbol Micros: UIBQ24075rgt

123511

UIBQ24075rgt

Contractor Symbol:

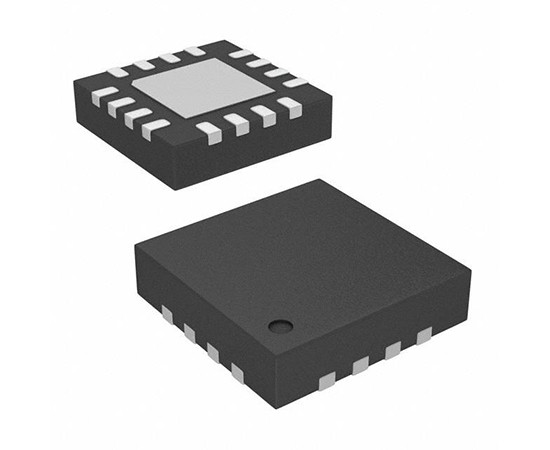

Case : QFN-16S(3x3-0.5)

Datasheet

Technical drawing Add to favourites

Li-Ion Battery Charger; Iout 1,5A; Vbat 4.2V/Power-Path Management IC; Vout 4.4V; 4,35V~6,4V; -40°C ~ 85°C;

Parameters

Supply voltage range:	4,35V~6,4V
Case:	QFN-16S(3x3-0.5)
Output current:	1,5A
Output voltage:	4,2V
Number of cells:	1
Accumulator type:	Li-Ion
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: BQ24075RGTR RoHS CDU Case style: QFN-16S(3x3-0.5) Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,6489	1,2237	1,0687	0,9935	0,9701

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	4,35V~6,4V
Case:	QFN-16S(3x3-0.5)
Output current:	1,5A
Output voltage:	4,2V
Number of cells:	1
Accumulator type:	Li-Ion
Operating temperature (range):	-40°C ~ 85°C
