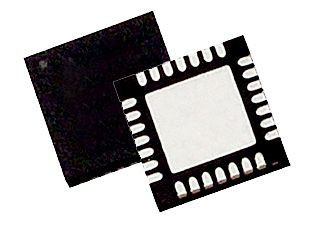

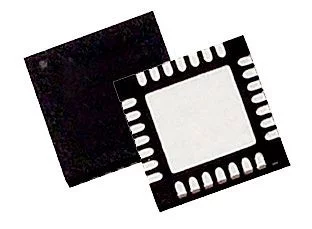

BQ24770RUYR

Symbol Micros: UIBQ24770ruy

172366

UIBQ24770ruy

Contractor Symbol:

Case : QFN-28S(4x4-0.4)

Datasheet

Technical drawing Add to favourites

NVDC Battery Charge Controller w/ System Power Monitor & Processor Hot Indicator; SMBus; 4,5V~24V; 8A; Vbat 19,2V; -40°C ~ 85°C; Equivalent: BQ24770RUYT;

Parameters

Supply voltage range:	4,5V~24V
Case:	QFN-28S(4x4-0.4)
Output current:	8A
Output voltage:	19,2V
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: BQ24770RUYR RoHS Case style: QFN-28S(4x4-0.4) Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,6510	2,2821	2,0645	1,9581	1,8942

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	4,5V~24V
Case:	QFN-28S(4x4-0.4)
Output current:	8A
Output voltage:	19,2V
Operating temperature (range):	-40°C ~ 85°C
