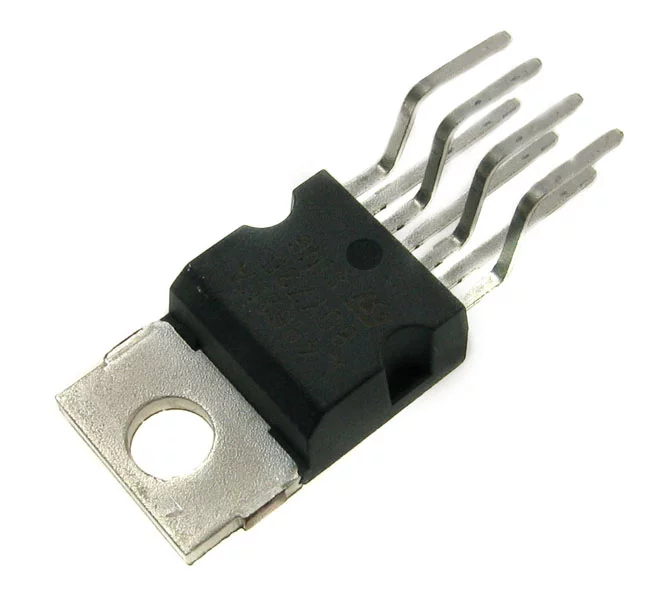

BTS500851TMBAKSA1

Symbol Micros: UIBTS500851TMB

145915

UIBTS500851TMB

Contractor Symbol:

Case : TO220/7

Datasheet

Technical drawing Add to favourites

Power Switch Hi Side 1-OUT 9.9A 0.0072Ohm Automotive 7-Pin(7+Tab) TO-220 ODPOWIEDNIK: BTS50085-1TMB;

Parameters

Drain resistance (Rds on):	0,009 Ohm
Input voltage range:	5V~58V
Turn on time:	400us
Manufacturer:	INFINEON
Operating temperature (range):	-40°C ~ 150°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Drain resistance (Rds on):	0,009 Ohm
Input voltage range:	5V~58V
Turn on time:	400us
Manufacturer:	INFINEON
Operating temperature (range):	-40°C ~ 150°C
