DRV8212PDSGR

Symbol Micros: UIDRV8212PDSGR

497597

UIDRV8212PDSGR

Contractor Symbol:

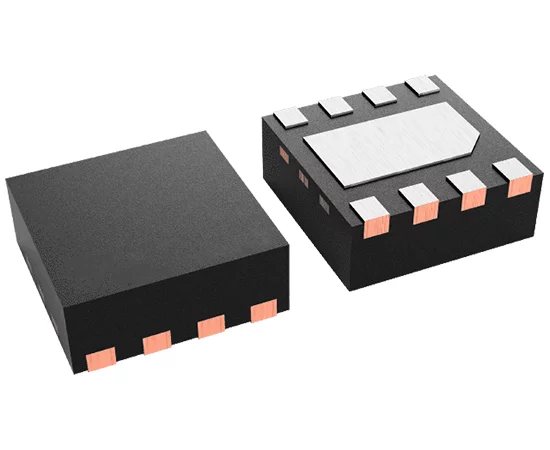

Case : WSON08(2x2)

Datasheet

Technical drawing Add to favourites

H-Bridge Motor Driver 8-Pin WSON EP T/R

Parameters

Supply voltage range:	1,65V~11V
Case:	WSON08(2x2)
Current:	4A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	1

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: DRV8212PDSGR RoHS Case style: WSON08(2x2) Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0527	0,7002	0,5796	0,5228	0,5015

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	1,65V~11V
Case:	WSON08(2x2)
Current:	4A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	1
