DRV8800PWP Texas Instrument

Symbol Micros: UIDRV8800pwp

92785

UIDRV8800pwp

Contractor Symbol:

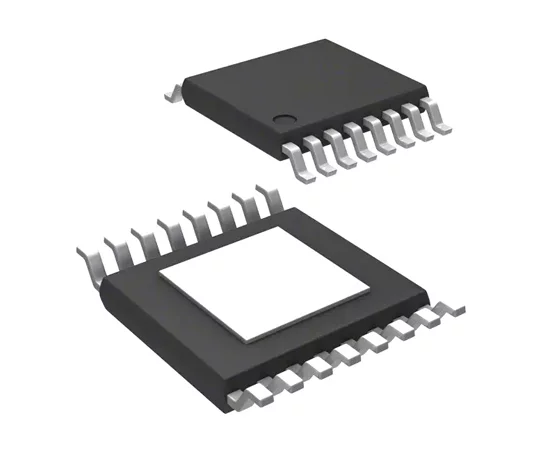

Case : HTSSOP16

Datasheet

Technical drawing Add to favourites

DMOS FULL-BRIDGE MOTOR DRIVERS H-Bridge Driver 8÷38V -40÷85°C

Parameters

Supply voltage range:	8V~38V
Case:	HTSSOP16
Current:	2,8A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 150°C
Number of channels:	0

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: DRV8800PWP RoHS Case style: HTSSOP16 Datasheet

In stock:

30 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,2152	0,9261	0,7663	0,6723	0,6394

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	8V~38V
Case:	HTSSOP16
Current:	2,8A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 150°C
Number of channels:	0
