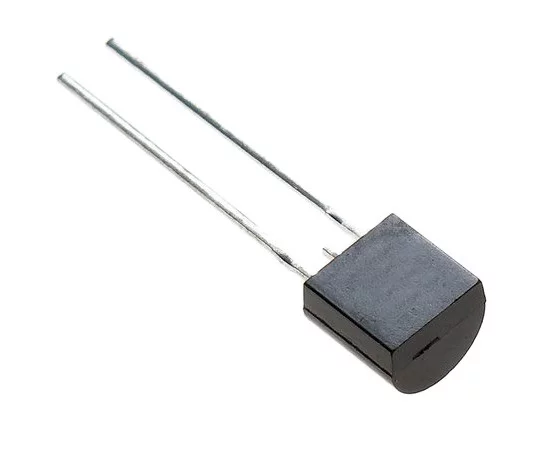

GX18B20W (GX18B20-2P)

Symbol Micros: UIDS18b20-2p GX

346972

UIDS18b20-2p GX

Contractor Symbol:

Case : TO92-2

Datasheet

Technical drawing Add to favourites

Digital Temperature Sensor, 1-Wire Interface, 9÷12-bit, ±0.4°C, 2.5÷5.5V, -55÷125°C

Parameters

Supply voltage range:	2,5V~5,5V
Case:	TO92-2
Working temperature range:	-55°C ~ 125°C
Manufacturer:	GXCAS
Integrated circuit type:	Sensor
Type of sensor:	Temperature sensor
Mounting:	THT

All parameters

Manufacturer:: GXCAS Manufacturer part number: GX18B20W RoHS Case style: TO92-2 Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	5+	30+	200+	400+
Net price (EUR)	1,1363	0,7536	0,6024	0,5504	0,5410

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

Manufacturer:: GXCAS Manufacturer part number: GX18B20W RoHS Case style: TO92-2 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,1363	0,7559	0,6260	0,5646	0,5410

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	2,5V~5,5V
Case:	TO92-2
Working temperature range:	-55°C ~ 125°C
Manufacturer:	GXCAS
Integrated circuit type:	Sensor
Type of sensor:	Temperature sensor
Mounting:	THT
