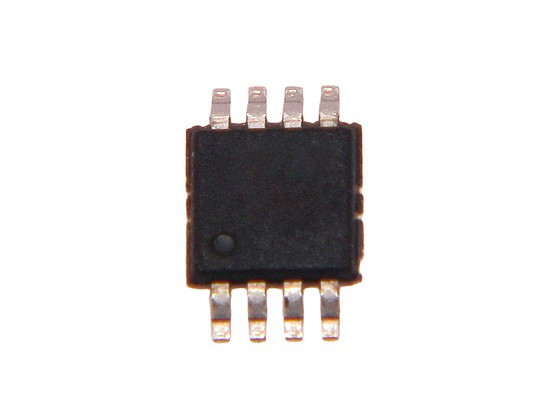

GX18B20UH

Symbol Micros: UIDS18B20Uh GX

358786

UIDS18B20Uh GX

Contractor Symbol:

Case : uSOP08

Datasheet

Technical drawing Add to favourites

Digital Temperature Sensor, 1-Wire Interface, 9÷12-bit, ±0.1°C, 2.5÷5.5V, -55÷125°C

Parameters

Supply voltage range:	2,5V~5,5V
Case:	uSOP08
Working temperature range:	-55°C ~ 125°C
Manufacturer:	GXCAS
Integrated circuit type:	Sensor
Type of sensor:	Temperature sensor
Mounting:	SMD

All parameters

Manufacturer:: GXCAS Manufacturer part number: GX18B20UH RoHS Case style: MSOP08 Datasheet

In stock:

19 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,3946	1,9011	1,7192	1,6247	1,5964

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	2,5V~5,5V
Case:	uSOP08
Working temperature range:	-55°C ~ 125°C
Manufacturer:	GXCAS
Integrated circuit type:	Sensor
Type of sensor:	Temperature sensor
Mounting:	SMD
