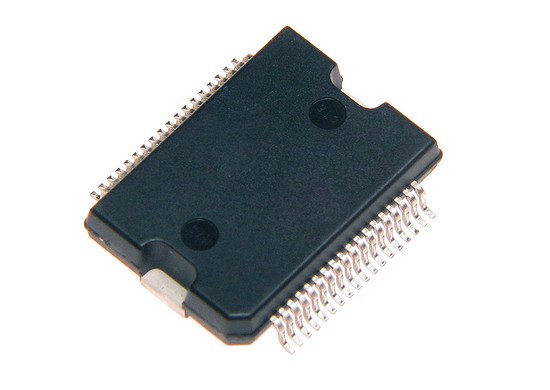

L6228PD

Symbol Micros: UIL6228pd

49625

UIL6228pd

Contractor Symbol:

Case : PowerSO36

Datasheet

Technical drawing Add to favourites

Dual Full-Bridge Stepper Motor Driver; 2,8A Peak; 8V~52V; -25°C ~ 125°C;

Parameters

Supply voltage range:	8V~52V
Case:	PowerSO36
Current:	2,8A
Manufacturer:	STMicroelectronics
Integrated circuit type:	Driver
Operating temperature (range):	-25°C ~ 125°C
Number of channels:	4

All parameters

Manufacturer:: ST Manufacturer part number: L6228PD RoHS Case style: PowerSO36 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	10+	30+	100+
Net price (EUR)	7,4200	5,9543	5,6114	5,2614	5,0477

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	8V~52V
Case:	PowerSO36
Current:	2,8A
Manufacturer:	STMicroelectronics
Integrated circuit type:	Driver
Operating temperature (range):	-25°C ~ 125°C
Number of channels:	4
